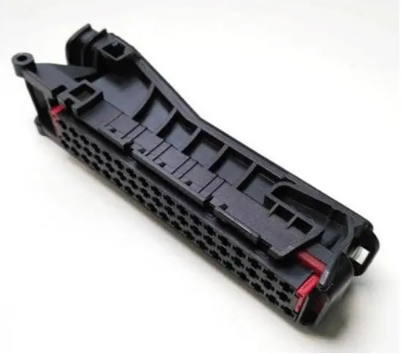

55 Position Recepatble Wire-to-Board Automotive Connectors

Product Description

Model:828907-1
Brand:Tyco

Product Description

Model	828907-1
Color	Black
Connector Shape	Rectangular
Connector System	Wire to board
Connector&Housing Type	Housing for Female Terminals
Number of Positions	55P
Sealable	Yes
Contact Type	Receptacle
Product Material	PBT GF
Centerline(Pitch)	5mm(0.196in)
Product Length	52.55mm(2.069in)
Product Width	36mm(1.417in)
Connector Height	40.25mm(1.585in)
Connector Mounting Type	Cable Mount(Free-Hanging)
Operating Temperature Range	-40-130°C [ -40-266°F ]
Packaging Method	Carton
Serviceable	No

After Sales Service

Technical support online service provided.
OEM available.
Our product with test report and certification
Our product with 3 year warranty.
