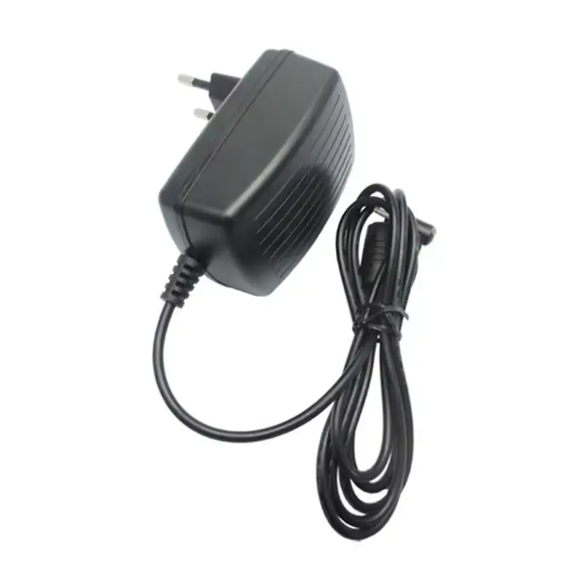

Product Name: Manufacturer EU Customizable Power Plugs Wall Mount Power Adapter 18W 9V 2A European Adapter with 5.5*2.5mm For Table
Usage
Security product
Output Type
DC
Connection
Plug In
| Packaging & delivery |
| Package Details: Export Carton |
Lead time:
| Quantity (pieces) | 1 – 2000 | > 2000 |
| Lead time (days) | 9 | To be negotiated |
Product Description:
| Specifications | |
| Model No. | |
| AC Input | |
| Nominal Input Voltage | AC 100V~240V |
| Input Voltage Range | AC 95V~265V |
| Input Frequency | 50/60Hz |
| DC Output | |
| Output Voltage | 9V |
| Output Current | 2A |
| Output Power | 18W |
| DC Connector Size | 5.5*2.5 |
| Line Regulation | 2% |
| Load Regulation | 5% |
| Ripple Noise | 180 Mvp-p |
| Efficiency | >85% |
| Output Cable Standard | 0.5mm2 Pure Copper |
| Output Cable Length | 1.5m normally or customized requirement |
| Environment | |
| Operating Temperature | 0°C ~40°C |
| Operating Humidity | 5%~95%RH |
| Storage Temperature | -20°C ~85°C |
| Storage Humidity | 5%~95%RH |
| Protection | |
| Over Load Protection | Short Circuit Protection |
| Over Current Protection | Over Temperature Protection |
| Certificates | |
| CE, ROHS, REACH, FCC, ERP, CB, GS, TUV, UL, CUL, CCC,PSE | |
| Dimensions | |
| Adapter Size | 8*5*3.9CM |
| Adapter Weight | 98G |
| Inner Box Size | 10*5.1*8.3CM |
| Inner Box Weight | 18G |
| PCS/CTN | 100PCS |
| Outer Carton Size | 52*28*36CM |
| Outer Carton Weight | 680G |
| GW/CTN | 12280G |
| Package | |
| Inner Box | Normally neutral brown box or customized requirement |
| Outer Carton | Normally neutral standard carton or customized requirement |
| Warranty | |
| Guarantee | 30 days |
| Warranty | 2 years |
| Terms and Conditions | |
| MOQ | 300PCS for mixed order |
| Payment Terms | T/T, PayPal, western union |
| Delivery Time | 3-5 days |
| Manufacturing Process | |
| 1. Set-Up→2. Hand Insertion→3. Wave Soldering→4. Touch-Up→5. V/I→6. ICT→7. INT→8. Apply Glue→9. Q/A→10. Entering Stock→11. Assembly→12. Power On Test→13. Hi-Pot Test→14. Burn-In→15. Hi-Pot Test→16. All Fun Test→17. Packing→18. OQC→19. Shipping | |
| Test Procedures | |
| 1.No-load output voltage test→2.input power load test→3.No-load output ripple test→4.Full load open test→5.Full load output voltage test→6.Full load output ripple test→7.Full load input power test→8.Half load output voltage test→9.Half load output ripple test→10.Over load test→11.Over current protection test →12.Short circuit protection test (above test is under both 110V and 230V.)→13.High voltage test→14. burn-in test→15.Turn on delay time test→16.Rise time test→17.Hold time test→18.Overshoot test | |
