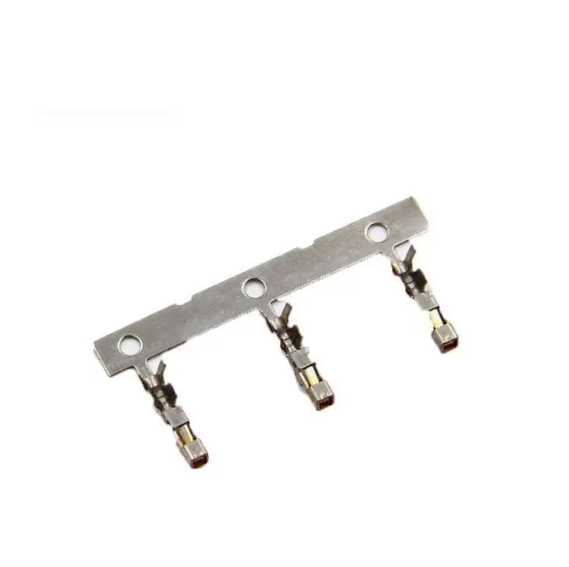

Waterproof Automotive Terminals Pin Contact Nickel Interface Plating Female Connectors

The Dynamic 1000 contact tabs and receptacles are designed with a 3 – 5A contact current rating, 28 – 22 wire size, and available with gold or tin plating. Used for signal circuit application.

• Mating Tab Thickness (mm) .46, .5
• Mating Tab Thickness (in) .018, .02
• Mating Tab Width (mm) .5, .7
• Mating Tab Width (in) .02, .027
• Contact Type Receptacle, Tab
• Contact Mating Area Plating Material Gold, Tin
• Contact Current Rating (Max) (A) 5


  Dimensions

• Termination Features
• Product Terminates To Wire & Cable
• Rectangular Termination Post & Tail Width .7 mm [ .027 in ]
• Rectangular Termination Post & Tail Thickness .5 mm [ .02 in ]
• Wire Size (AWG) 22 – 18, 28 – 22, 30 – 28
• Wire Size (mm²) .05 – .09, .08 – .38, .34 – .86
• Usage Conditions: Operating Temperature Range -55 – 105 °C [ -67 – 221 °F ]
