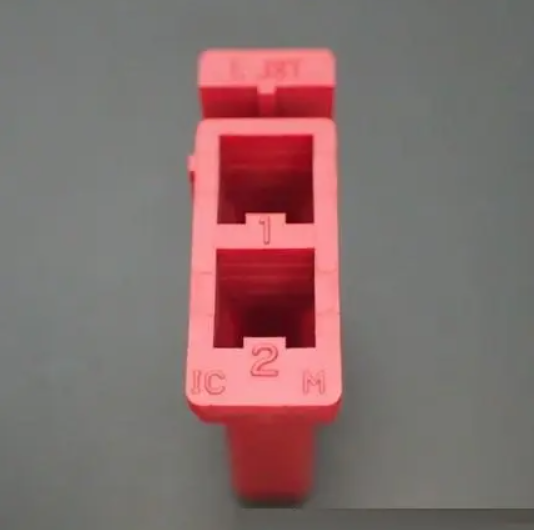

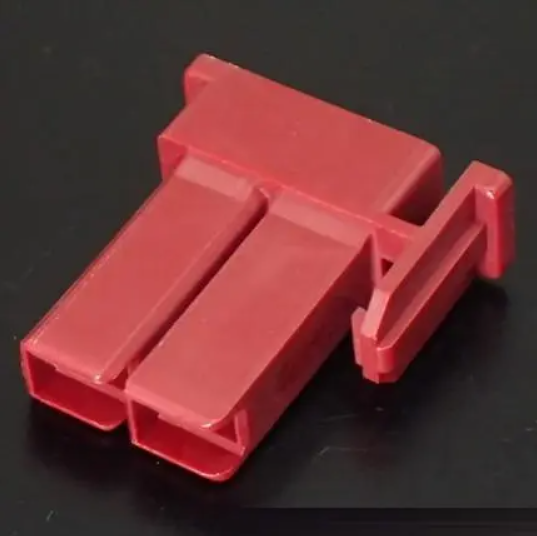

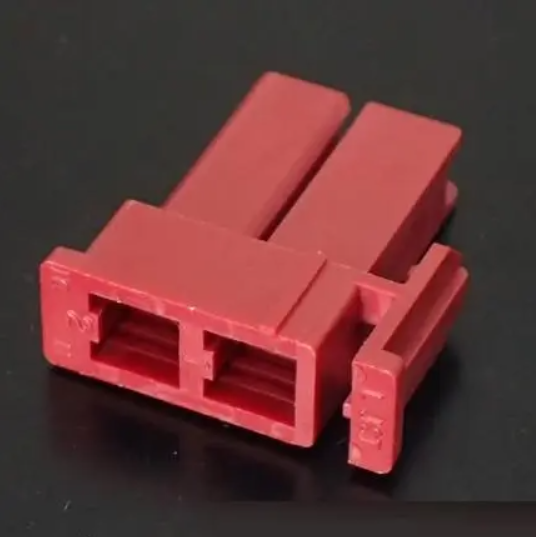

- XLP-02V-R
- JST
This is a highly reliable board-to-wire connector developed based on the proven track record of VH connectors, which are already used in numerous electronic and electrical equipment such as home appliances, vending machines, and office machines.
Product Advantage
1）Advanced technology and materials
2）RoHS /REACH/UL certificated
3) global well-known connector brand ,widely used in automotive industry
4) After Sales Service
Technical Parameters
Series title：XL CONNECTOR
Type：Wire to Board Crimp style Connectors
Type：Crimp style, With locking device Disconnectable type
Disconnectable type
pitch ：5mm
Rated Current: 10A (2 circuits/AWG#16)
Rated Voltage: 150V
installation direction:Top entry, Side entry
characteristic：With secure locking device
Product Uses
1. Automotive Connectors are used to automotive industry
2.Automotive Connectors are Harness assemblies
